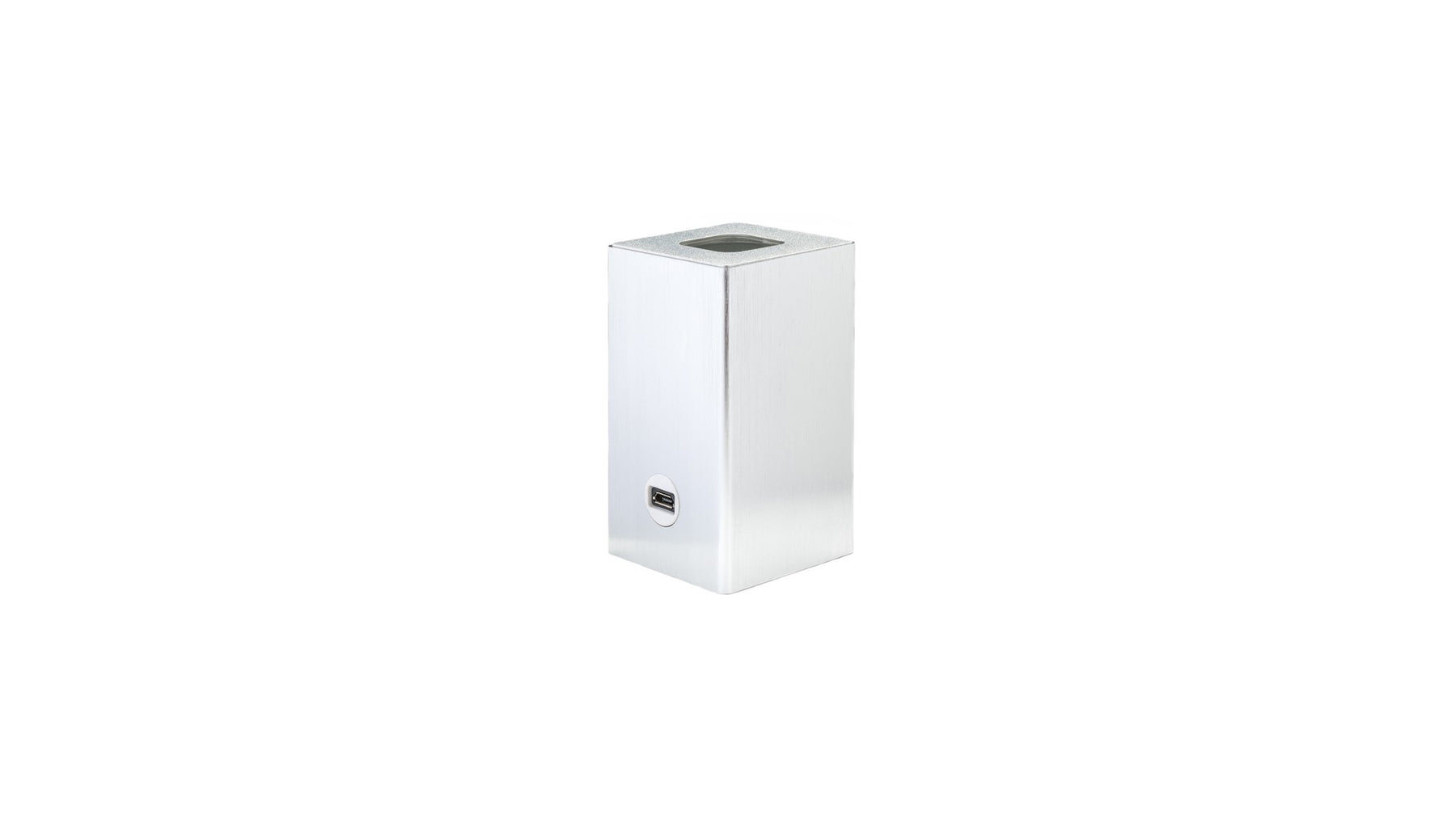

DPM Reader DT-10

Data matrix codes and QR codes are ideal for marking small or difficult items. Reading these small codes on challenging surfaces such as surgical instruments, however, it has not always been easy and attempts to widely implement tracking systems have been expensive, frustrating and time consuming. NUMA DPM reader DT-10 makes it a lot easier and faster even for reading small low-contrast codes on reflective or curved surfaces.

DataMatrix code is used for encoding large amounts of data in a small amount of space. Therefore, it can be used for various applications such as direct part marking (DPM) and laser marking (both especially in the aerospace, electronics, and automotive industry) and also commonly used for general logistic purposes, document management applications, postal services, and medical or health industry related applications.

The possibility to engrave the Data Matrix barcode permanently is one of the most prominent benefits of this barcode-type. This procedure is referred to as Direct Part Marking (DPM) and can be applied using laser engraving or dot peen markers.

NUMA DT-10 DPM reader is specifically developed to enable tracking of surgical instruments. For the codes on very small instruments that are almost invisible to the human eye can be captured and read in a fraction of a second.

As the model DT-10 supports reading both Data Matrix code and QR code that makes it an ideal solution for small industrial items, such as electronic components or surgical instruments. It can even read data matrix codes and QR codes as small as 1mm x 1mm. The DPM reader can help customers to implement the tracking and traceability as they desire.

Must know features of the model DT-10

• Easy to use, plug & play
• Reading small data matrix code on all surfaces
• Reading size from 2mm to 14mm
• Focusing point 0mm~30mm (depending on barcode size)
• Compatible with Windows, Linux, MAC OS, iOS and Android
• No need to install any software or apps
• Compact size and stylish design
• Medical Use-UDI
• Auto-sense

The advantages that DPM Reader offers

• With a size of 2.5 mm x 2.5 mm, the Data Matrix code is extremely small, yet it can store up to 3,116 coded alphanumeric characters. This makes it ideal for smaller items, such as spare parts of smartphones.
• Format: In contrast to the well-known QR Code, a Data Matrix barcode can also have a rectangular design. This is particularly convenient when there is little space on the product.
• DPM: Direct Part Marking can be used to permanently engrave a Data Matrix code so that components can be identified for decades.

Program the DPM reader to what you need

The 2D scan engine integrated can be programmed with no difficulty or effort. NUMA provides rich configuration codes that fit for different user demands. User can simply scan the barcodes provided and configure the reader as needed, easy and quick setting.

More Applications

NUMA DT-10 is not only a DPM reader but also a data matrix barcode reader and QR code reader which is engineered to decode data matrix codes and QR Code on all surfaces such as anodized aluminum, stainless steel or chrome plated surfaces etc.

For asset tracking, identification and data-driven applications, traditional Data Matrix Codes are generally the best choice. Though usually small in size, the Data Matrix Code can store large amounts of data for encoding, making them appropriate for a wide variety of applications.

Find out more information of NUMA scanner, please visit NUMA website https://www.numa-tech.com/en. Or please send your inquiry to sales@numa-tech.com for proposal and quote.
